Water cannon

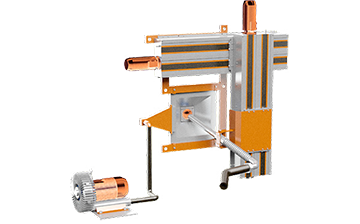

Water cannon ASO-WD1

Purpose

General function of the water cannon is jet-like spraying of the other side of the furnace using oscillating reverse motion of the jet towards sources of contamination according to a desired trajectory Features of the ASO-WD1 long-range water blower: blowing tube is not telescopic; it turns in horizontal and vertical direction; blowing is made using water jet from the nozzle at the end of the tube; cleaning area is directed horizontally and vertically at an angle of 90 degrees. Operating pressure of the ASO-WD1 long-range water blower is between 1 and 3 MPa, water temperature is up to 50°С, and stream distance is up to 30 m.

Installation site

ASO-VD1 water cannon is used for cleaning furnace waterwalls.
Working medium - water, P=1-3 MPa, T=50°С.

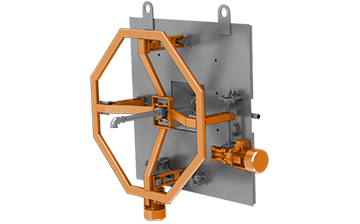

Water cannon ASO-WD2

Purpose

General function of the water cannon is jet-like spraying of the other side of the furnace using oscillating reverse motion of the jet towards sources of contamination according to a desired trajectory Features of the ASO-WD2 long-range water blower: blowing tube is not telescopic; it turns in horizontal and vertical direction; blowing is made using water jet from the nozzle at the end of the tube; cleaning area is directed horizontally and vertically at an angle of 90 degrees. Operating pressure of the ASO-WD2 long-range water blower is between 1 and 3 MPa, water temperature is up to 50°С, and stream distance is up to 30 m.

Installation site

ASO-WD2 water cannon is used for cleaning furnace waterwalls.
Working medium - water, P=1-3 MPa, T=50°С.

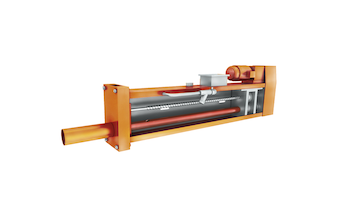

Water cannon ASO-VK

Purpose

ASO-VK short telescopic water blower is used for cleaning furnace waterwalls near platen superheaters and other hard-to-reach spots of the bolier furnace. Surfaces are cleaned with moving water jets at 50°С and 1-2 MPa; jets are formed and directed towards the area to be cleaned using nozzles. When the blower is working, it is cleaning the surface of the wall where it is installed. Extension depth of the water blower is up to 2 m. Cleaning area is 360°.

Installation site

ASO-VK long-range water blower is used for cleaning furnace waterwalls.
Working medium - water, P=1-3 MPa, T=50°С.

Advantages of water blowers by Powerz

Water blowers are used for cleaning furnace waterwalls of ash buildups. Long-range and telescopic water blowers may be used both independently and together in order to increase efficiency of the cleaning process and surface area of the furnace walls to be cleaned.
